AE 03: Joining prognosticators

Suggested answers

Application exercise
Answers
Modified

September 13, 2024

Important

These are suggested answers. This document should be used as reference only, it’s not designed to be an exhaustive key.

library(tidyverse)
library(scales)

seers <- read_csv("data/prognosticators.csv")
weather <- read_csv("data/weather-region.csv")

Prognosticator success

We previously examined the accuracy rate of Groundhog Day prognosticators.1 Today we want to work with the original dataset to understand how those accuracy metrics were generated and answer the question: How does prognosticator accuracy vary by climatic region?

1 See ae-01

Let’s start by looking at the seers data frame.

glimpse(seers)
Rows: 1,710
Columns: 7
$ name            <chr> "Punxsutawney Phil", "Punxsutawney Phil", "Punxsutawne…
$ forecaster_type <chr> "Groundhog", "Groundhog", "Groundhog", "Groundhog", "G…
$ alive           <lgl> TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, …
$ town            <chr> "Punxsutawney", "Punxsutawney", "Punxsutawney", "Punxs…
$ state           <chr> "PA", "PA", "PA", "PA", "PA", "PA", "PA", "PA", "PA", …
$ year            <dbl> 2024, 2023, 2022, 2021, 2020, 2019, 2018, 2017, 2016, …
$ prediction      <chr> "Early Spring", "Late Winter", "Late Winter", "Late Wi…

We have the predictions, but our goal is to make a visualization by climate region.2

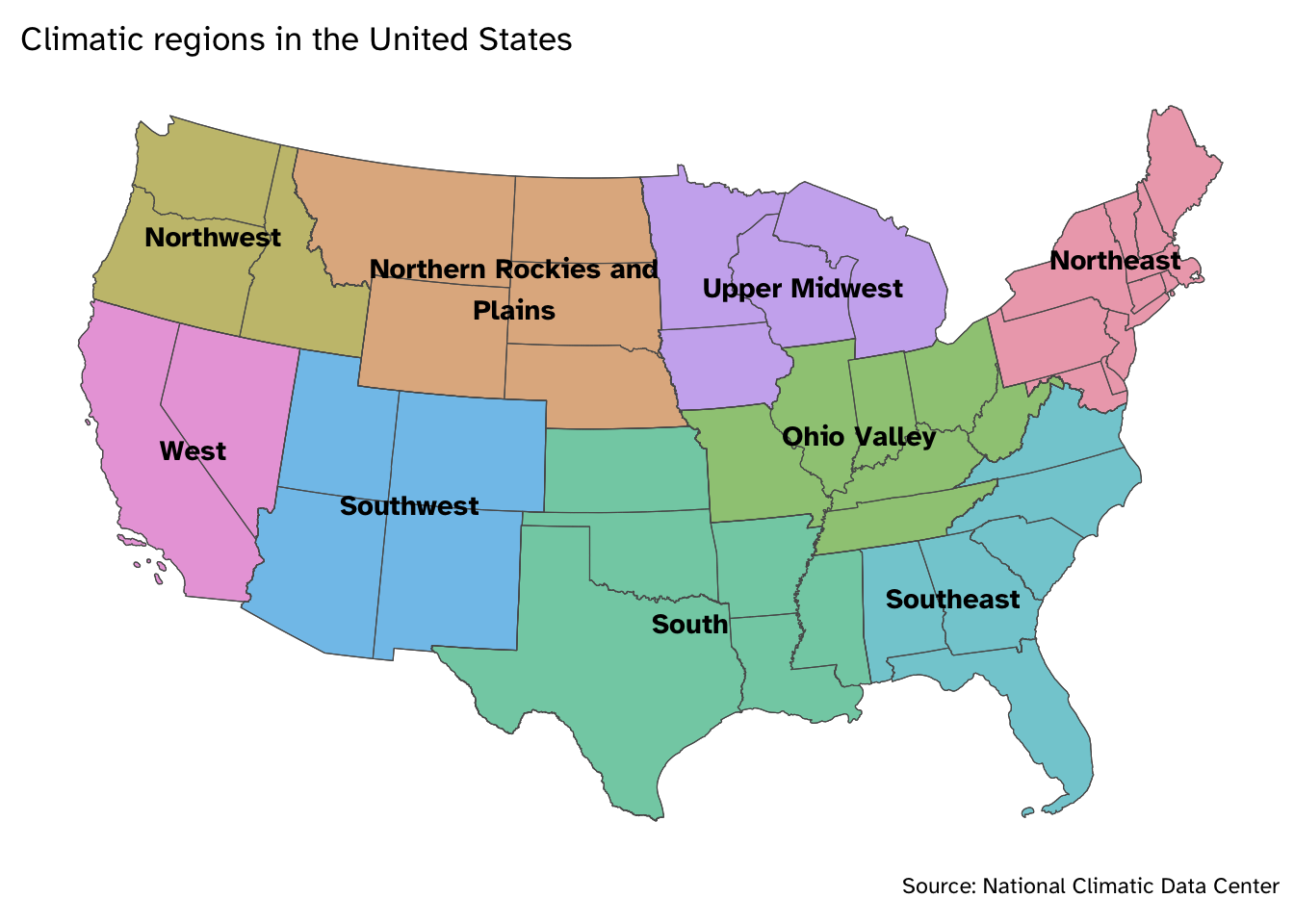

The nine regions as defined by the National Climatic Data Center and regularly used in climate summaries.

Join the data frames

Let’s take a look at the weather data frame.

glimpse(weather)
Rows: 5,568
Columns: 13
$ region         <chr> "Northeast", "Northeast", "Northeast", "Northeast", "No…
$ state_abb      <chr> "CT", "CT", "CT", "CT", "CT", "CT", "CT", "CT", "CT", "…
$ id             <dbl> 101, 101, 101, 101, 101, 101, 101, 101, 101, 101, 101, …
$ year           <dbl> 1909, 1910, 1911, 1912, 1913, 1914, 1915, 1916, 1917, 1…
$ avg_temp       <dbl> 28.00, 29.20, 24.90, 23.15, 28.05, 22.05, 27.50, 21.55,…
$ temp_hist      <dbl> 25.58333, 26.09000, 26.16667, 25.85667, 25.63333, 25.52…
$ temp_hist_sd   <dbl> 4.245360, 4.241218, 4.103158, 4.124311, 3.907804, 4.016…
$ temp_sd        <dbl> 4.154767, 4.154767, 4.154767, 4.154767, 4.154767, 4.154…
$ precip         <dbl> 4.005, 2.520, 2.810, 3.570, 3.765, 2.920, 2.330, 3.425,…
$ precip_hist    <dbl> 3.476667, 3.526667, 3.378000, 3.411000, 3.446333, 3.352…
$ precip_hist_sd <dbl> 1.1784719, 1.2081292, 1.1442431, 1.1620681, 1.2039309, …
$ precip_sd      <dbl> 0.9715631, 0.9715631, 0.9715631, 0.9715631, 0.9715631, …
$ outcome        <chr> "Early Spring", "Early Spring", "Early Spring", "Late W…
  • Your turn (2 minutes):
    • Which variable(s) will we use to join the seers and weather data frames?
    • We want to keep all rows and columns from seers and add columns for corresponding weather data. Which join function should we use?
  • Demo: Join the two data frames and assign the joined data frame to seers_weather.
seers_weather <- inner_join(
  x = seers, y = weather,
  by = join_by(state == state_abb, year)
)

Calculate the variables

  • Demo: Take a look at the updated seers data frame. First we need to calculate for each prediction whether or not the prognostication was correct.
seers_weather <- seers_weather |>
  mutate(correct_pred = prediction == outcome)
  • Demo: Calculate the accuracy rate (we’ll call it preds_rate) for weather predictions using the summarize() function in dplyr. Note that the function for calculating the mean is mean() in R.
seers_weather |> # start with seers data frame
  group_by(region) |> # group by region
  summarize(preds_rate = mean(correct_pred)) # calculate accuracy rate
# A tibble: 9 × 2
  region                      preds_rate
  <chr>                            <dbl>
1 Northeast                        0.491
2 Northern Rockies and Plains      0.574
3 Northwest                        0.442
4 Ohio Valley                      0.557
5 South                            0.506
6 Southeast                        0.568
7 Southwest                        0.667
8 Upper Midwest                    0.5
9 West                             0.286
  • Your turn (5 minutes): Now expand your calculations to also calculate the number of predictions in each region and the standard error of accuracy rate. Store this data frame as seers_summary. Recall the formula for the standard error of a sample proportion:

\[SE(\hat{p}) \approx \sqrt{\frac{(\hat{p})(1 - \hat{p})}{n}}\]

seers_summary <- seers_weather |>
  group_by(region) |>
  summarize(
    preds_rate = mean(correct_pred),
    preds_n = n(),
    preds_se = sqrt((preds_rate * (1 - preds_rate)) / preds_n)
  )
seers_summary
# A tibble: 9 × 4
  region                      preds_rate preds_n preds_se
  <chr>                            <dbl>   <int>    <dbl>
1 Northeast                        0.491     696   0.0189
2 Northern Rockies and Plains      0.574      47   0.0721
3 Northwest                        0.442      52   0.0689
4 Ohio Valley                      0.557     280   0.0297
5 South                            0.506      79   0.0562
6 Southeast                        0.568     176   0.0373
7 Southwest                        0.667      36   0.0786
8 Upper Midwest                    0.5       104   0.0490
9 West                             0.286       7   0.171
  • Demo: Take the seers_summary data frame and order the results in descending order of accuracy rate.
seers_summary |> # start with seers_summary data frame
  arrange(desc(preds_rate)) # order in descending order of preds_rate
# A tibble: 9 × 4
  region                      preds_rate preds_n preds_se
  <chr>                            <dbl>   <int>    <dbl>
1 Southwest                        0.667      36   0.0786
2 Northern Rockies and Plains      0.574      47   0.0721
3 Southeast                        0.568     176   0.0373
4 Ohio Valley                      0.557     280   0.0297
5 South                            0.506      79   0.0562
6 Upper Midwest                    0.5       104   0.0490
7 Northeast                        0.491     696   0.0189
8 Northwest                        0.442      52   0.0689
9 West                             0.286       7   0.171

Recreate the plot

  • Demo: Recreate the following plot using the data frame you have developed so far.

seers_summary |>
  mutate(region = fct_reorder(.f = region, .x = preds_rate)) |>
  ggplot(mapping = aes(x = preds_rate, y = region)) +
  geom_point(mapping = aes(size = preds_n)) +
  geom_linerange(mapping = aes(
    xmin = preds_rate - preds_se,
    xmax = preds_rate + preds_se
  )) +
  scale_x_continuous(labels = label_percent()) +
  labs(
    title = "Prognosticator accuracy rate for late winter/early spring",
    subtitle = "By climate region",
    x = "Prediction accuracy",
    y = NULL,
    size = "Total number\nof predictions",
    caption = "Source: Countdown to Groundhog Day & NOAA"
  ) +
  theme_minimal()

  • Your turn (time permitting): Make any other changes you would like to improve it.
# add your code here
